Electric picking trucks are a very important equipment in the field of warehousing and logistics, mainly playing the following roles:
Improve picking efficiency
The electric picking truck is equipped with an electric motor drive, which can help workers quickly move to different shelf positions for product picking, greatly improving the efficiency of picking operations. Compared to manual walking, electric picking trucks have a faster movement speed.
Advantage:
- Wide angle view, high-strength shock absorption mast
- American CURTIS brand drive control system
- Vertical drive system
- Electronic steering, portable, mute
- Integrated low-noise hydraulic pump
- Electromagnetic hydraulic valve
- AC drive, brushless, motor maintenance free
- Electromagnetic and regenerative braking system
- Lifting limit, integrated thumb switch
- Body damping system
Safety:
- Curve automatic deceleration device
- Drive stepless speed regulation
- Controller multiple brake protection system
- Leisure backrest/ emergency braking device
| Model |
|
CXD10 |
| Rated lifting capacity |
kg |
1000 |
| Load center |
mm |
450 |
| Power type |
|
Electric |
| Operator type |
|
Standing |
| Total weight |
|
3150 |
| Drive wheel |
mm |
φ230×75 |
| Front wheel |
mm |
φ150×90 |
| Auxiliary wheel |
|
φ130×55 |
| Lifting height |
mm |
9000 |
| Max. lifting height of fork |
mm |
600 |
| Overall length |
mm |
3065 |
| Overall width |
mm |
1342 |
| Height of mast closed |
|
2885 |
| Maximum height when rising to the maximum |
mm |
8250 |
| Height of roof protection frame |
mm |
2250 |
| Min. ground clearance |
mm |
50 |
| Min. height of operating table from the ground |
mm |
240 |
| Auxiliary lifting height |
mm |
0 |
| Max. lifting height of operating table |
mm |
6240 |
| Fork length |
mm |
920*120*40 |
| Fork outer width |
mm |
680 |
| Turning Radius |
mm |
1832 |
| Right angle channel (1200 horizontal x 1000) |
|
3370 |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are new manufacturer in China but have more experience of electric forklift for more than 5 years .
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide ODEand OEM service?
A4: Yes.
Product Tags:
|
|

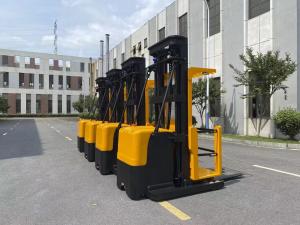

High Capacity Electric Picking Truck with 230V Battery and 920 mm Forks Images
|
